How to classify the specifications and models of high-pressure rubber hoses?
Mar 24,2025
The products of wire weaving and wire winding not only have differences in process, but also in specific usage situations and some specifications and models:
1. Steel wire weaving specification range: DN5mm～DN102mm。
Operating temperature: oil -40 ℃~100 ℃, air -30 ℃~50 ℃, water lotion+80 ℃ or less.
2. Specification range of steel wire wrapped rubber hose: DN6mm～DN305mm， Working temperature:- 40℃～120℃
Often suitable for high pressure working conditions, with high resistance to working pressures up to 70-120Mpa
3. Types of wire winding:

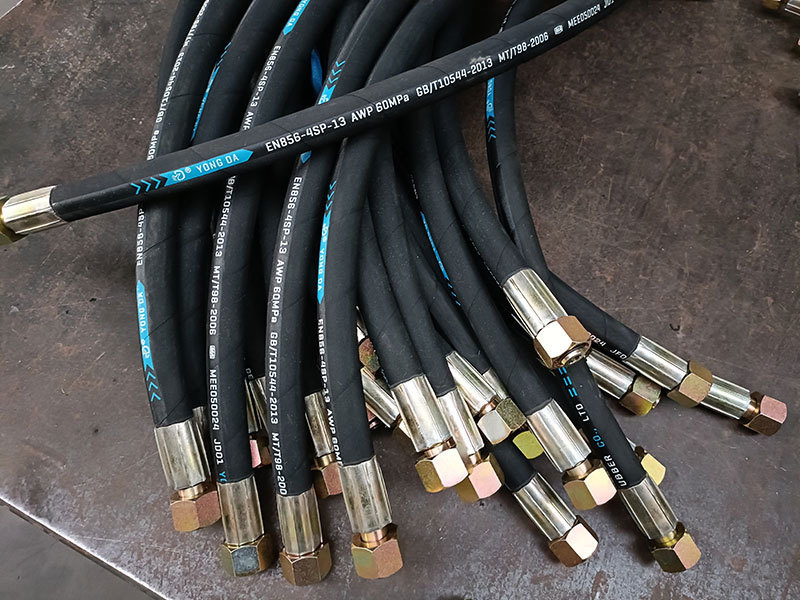

4SP type - medium pressure rubber hose with four layers of steel wire winding.
4SH type - high-pressure rubber hose with four layers of steel wire winding.
R12 type - High temperature and medium pressure oil pipe with four layers of steel wire winding under harsh conditions.
R13 type - High temperature and high pressure oil pipe with multi-layer steel wire winding under harsh conditions.
R15 type - High temperature and ultra-high pressure oil pipe with multi-layer steel wire winding under harsh conditions
4. MT/T98-2006 "Inspection Specification for Hydraulic Support Hoses and Hose Assemblies"
GB/T3683-2011 Rubber hoses and hose assemblies - Specification for steel wire braided reinforced hydraulic type for use with oil-based or water-based fluids
Specification for Inspection of Safety Signs of Mining Products
5 GB/T10544-2003 "Hydraulic rubber hoses and hose assemblies reinforced with steel wire winding and covered with rubber"
Rubber hose is one of the important connecting components in modern industrial equipment and construction machinery, and is widely used in hydraulic systems. Regarding the technical advice for selecting high-pressure hoses, the correct choice of hose is related to the normal operation of the entire hydraulic system.
